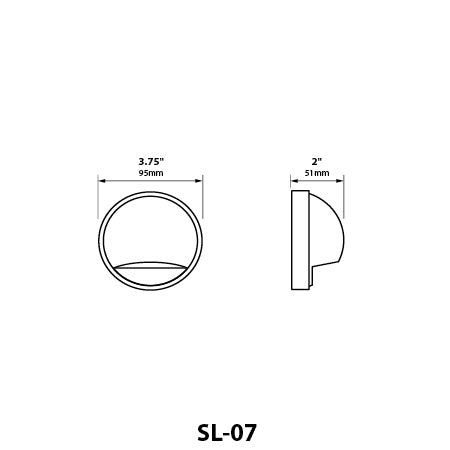

Focus Industries® 3.75" Dome Surface Mount with Blasted Glass Lens

Focus Industries® 3.75" Dome Surface Mount with Blasted Glass Lens

$242.12
$242.12
Sale Sold out
Shipping calculated at checkout.
Voltage
Material
Color
View full details

DETAILS

This small "hockey puck" style surface light is perfect for a variety of applications, offering both functionality and a modern style. This surface light is ideal for walkways, architectural highlights, and outdoor ambient lighting, providing a reliable and efficient lighting solution.

Material: Brass or Stainless Steel
Finishes:
  • Brass (Unfinished)
  • Stainless Steel (Unfinished)
  • Standard Finishes: Black Texture, Bronze Texture
  • Premium Finishes: Dark Bronze, Black Magic
  • Acid Treatments (Brass Only): Rust, Black, Verde
LED:

12V Version (Brass or Stainless):

  • 3W Omni SS LED

120V Version (Brass or Stainless):

  • 3W Omni 3 120V LED


CCT/LM:

12V Version (Brass or Stainless):

  • 3000K/300LM

120V Version (Brass or Stainless):

  • 3000K/400LM
Package Contents:
  • Focus Surface Mount Dome Light
  • Mounting Hardware
Spec Sheet: SL07 Spec Sheet

SPECIFICATIONS

CONSTRUCTION: Cast aluminum, cast brass or 316 Stainless Steel “Hockey Puck” style

LENS: Sand blasted tempered flat glass

LAMP OPTIONS: LED & legacy lamp options see specification sheet

SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v; both with 200°C silicone lead wires

SOCKET -MR8 MODELS: High temp ceramic GU5.3 bi-pin with 250°C silicone lead wires

WIRING: Black 5 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
120v Standard wiring

CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
12v only

MOUNTING: Back plate and hardware supplied
