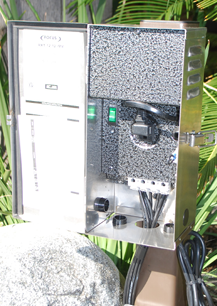

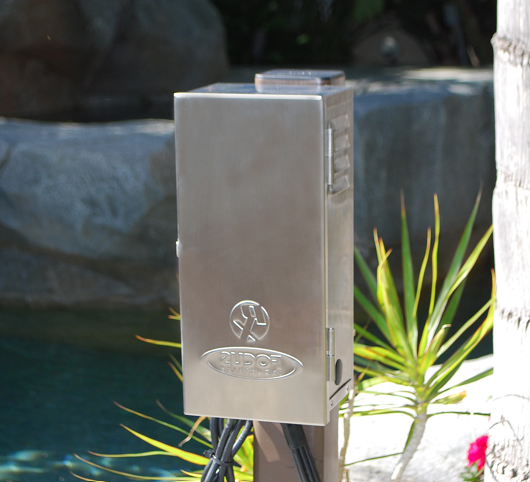

Focus Industries® RXT1260MV 60W Transformer

The Focus Industries® 60W Transformer is a durable and efficient solution for powering low-voltage lighting systems, making it ideal for landscape, garden, or security lighting applications. This compact transformer ensures a safe, reliable power source with minimal energy loss. Its weatherproof, rugged casing is built to withstand outdoor conditions, while built-in safety features like overload and short-circuit protection provide peace of mind. With a sleek design and easy installation, the Focus Industries 60W Transformer is perfect for powering decorative or functional lighting in residential or commercial outdoor spaces.

MATERIAL/FEATURES
• UL 1838 listed, the standard for low voltage landscape lighting systems
• 60, 120, 180, 300 and 600 watt output models available
• Multi Voltage output standard(12.5, 13.5 & 14.5 AC Volts)
• Super Terminal Lugs with capacity of 3 x #8, 5 x #10, 7 x #12 or 9 x #14 gauge wire
• 304 Stainless Steel enclosure with No. 4 brushed finish
• Removable hinged door is lockable and weather sealed
• Above grade, NEMA 3R rated, rain tight enclosure
• LED indicators for instant recognition of 120v and 12v power
• Timer Ready standard (for plug in timers)
• Optional Mechanical Timer (-T), Digital Timer (-DT) and Astro Timer (-AT) face plates can be factory or field installed
• Photocell Ready with quick connector (not on -AT models)
• Supplied with two 1/2" conduit (trade size) holes & one 1-1/2" inlet with plugs in bottom panel plus 2 side panel 1/2"
conduit (trade size) holes with plugs
• Break away bottom panel swings down for easy access wiring
• 11 gauge cold rolled steel ‘L’ brackets for stable mounting
• Mounting plate and hardware included
FiNiSH
• Brushed Stainless Steel
ELECTRiCAL
• Long life, high efficiency 266°F (130°C) class ‘B’ rated transformer core
• Copper Shielded isolation/insulation; No contact between 120v and 12v windings
• 1500v Isolation between all windings and ground
• Grade M19 electric grade steel for superior electrical and magnetic properties
• Single phase, open core and coil
• E.L. laminated core has concentric winding and is protected by 180°C thermal switch.
• Double vacuumed impregnated with black slate flour
• Filled varnish for superior heat dissipation and noise reduction - Class 180°C
• 120v primary, 12.5v AC secondary 50/60 Hertz/cycle (standard)
• 6 foot 18/3 SJT-WA weatherproof grounded power cord (120v)
• ON/OFF control via rocker switch on 120v side
• Extra heavy duty (80 amp) terminal lugs
• Manually resettable circuit breakers on front panel for overload and short circuit protection
